In this article will go through the difference between the star and ring topology in detail. In the beginning of this article, we will go through the basic meaning of both the topologies after that we will some differences between them.
It is also called as star network. This topology has a client-server connection. In this, there is a central controller called a hub or switch. The following figure displays the working of star topology.
In the above figure, it shows that all these nodes communicate via a hub only.

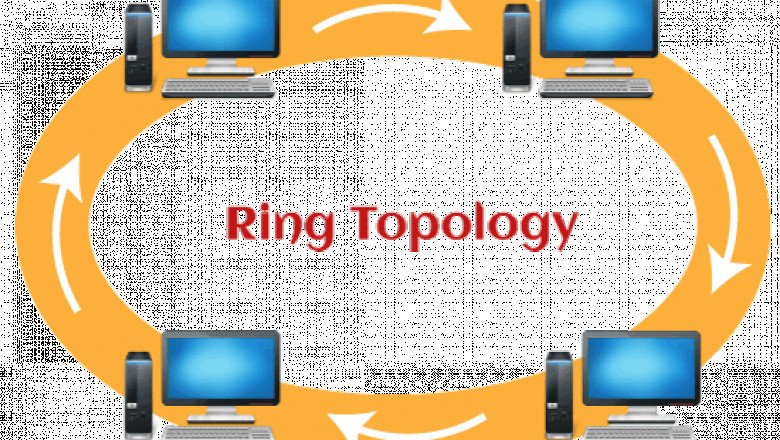

It is also called as ring network. This topology has a peer to peer connection. In-ring topology, the various nodes are connected in the form of a ring in which data flows in a circle, from one station to another station. The following figure shows the working of ring topology.
In the above figure, in a ring topology there is no master controller.
Following are the differences between the star topology and ring topology.
